UNS S43000 Square Tubes, SS 430 Square Tubes, Stainless Steel 430 Square Tubes Supplier, Manufacturer and Exporter in India
Din 1.4016 SS 430 Square Tubes, SS UNS S43000 Square Tubes, Stainless Steel 430 Square Tubes, 440 Stainless Steel Square Tubes Suppliers in India.
GENERAL PROPERTIES:-
Grade 430 is a ferritic, straight chromium, non-hardenable grade, combining good corrosion resistance and formability characteristics with useful mechanical properties. Its ability to resist nitric acid attack permits its use in specific chemical applications but automotive trim and appliance components represents its largest fields of application.
Grade 430F is the free-machining version of this grade, available in bar form for use in automatic screw machines. Grade 434 is the molybdenum bearing version of Grade 430 and has the same useful combination of properties. Its molybdenum addition improves corrosion resistance.
These properties for 430 are specified for flat rolled product (plate, sheet and coil) in ASTM A240/A240M. Similar but not necessarily identical properties are specified for other products such as forgings and bar in their respective specifications. Properties of Grade 430F are specified for bar in ASTM A582.
APPLICATIONS:-
Typical applications for 430 grade include:
- Linings for dish washers
- Refrigerator cabinet panels
- Automotive trim
- Lashing Wire
- Element Supports
- Stove trim rings
- Fasteners
- Chimney Liners
Typical applications for 430F grade include:
- Repetition machined components
CORROSION RESISTANCE:-
Grade 430 has good resistance to a wide variety of corrosive enviornments, including nitric acid and some organic acids. It attains its maximum corrosion resistance when in the highly polished or buffed condition. In general its resistance to pitting and crevice corrosion resistance is close to that of grade 304. Stress corrosion cracking resistance of Grade 430 is very high, as it is for all ferritic grades.
Like other high-sulphur free machining grades 430F has much reduced resistance to pitting and crevice corrosion compared to its non-free machining equivalent.
HEAT TREATMENT:-
- Solution Annealing – Heat to 815-845°C, hold for ½ hour per 25mm of thickness, slow furnace cool to 600°C and then quickly air cool. Slow cooling from 540-400°C will cause embrittlement.
- Sub-Critical anneal – Heat to 760-815°C and then air cool or water quench.
- This grade is not hardenable by thermal treatment.
WELDING:-
- Pre-heat at 150-200°C if welding is necessary.
- Embrittlement in the weld metal and heat affected zone can be relieved by a post-weld anneal at 790-815°C
- Grain refinement will not occur.
MACHINING:-
- Easier to machine than the standard austenitic grades such as 304.
- Still a tendency for galling and pick-up on the cutting tool.
- Tubes that have been lightly drawn are easier to machine than those in the annealed condition.
- Grade 430F, the free machining version of 430, is very much easier to machine.
FABRICATION:-
- Lower work hardening rate makes bending and forming somewhat easier than for grade 304
- Lower ductility restricts very severe operations.
- Severe bends should be made with the bend axis at right angles to the rolling direction.
- Severe cold heading of 430 wire is possible.
COMPOSITION:-
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 430 | min. max. | - 0.12 | - 1.00 | - 1.00 | - 0.040 | - 0.030 | 16.0 18.0 | - | - 0.75 | - |
| 430F | min. max. | - 0.12 | - 1.25 | - 1.00 | - 0.06 | 0.15- | 16.0 18.0 | - | - | - |
MECHANICAL PROPERTIES:-
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 430 | 450 | 205 | 22 | 89 | 183 |
| 430F | 552 typical | 379 typical | 25 typical | - | 262 |
PHYSICAL PROPERTIES:-
| Grade | Density (kg/m3) | Elastic Modulus (GPa) |
Mean Coefficient of Thermal Expansion (mm/m/°C) |
Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nW.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 430 | 7750 | 200 | 10.4 | 11.0 | 11.4 | 23.9 | 26.0 | 460 | 600 |
| 430F | 7750 | 200 | 10.4 | 11.0 | 11.4 | 26.1 | 26.3 | 460 | 600 |
POSSIBLE ALTERNATIVE GRADES:-
In the table below are a list of possible alternative grades to Grade 430.
| Grade | Reason it may be chosen instead of 430 |
|---|---|
| 430F | Higher machinability than 430 is needed in bar product, and reduced corrosion resistance is acceptable. |
| 434 | Better pitting resistance is required |
| 304 | Slightly higher corrosion resistance is needed, together with greatly improved ability to be welded and cold formed |
| 316 | Much better corrosion resistance is needed, together with greatly improved ability to be welded and cold formed |
| 3CR12 | A lower corrosion resistance is acceptable in a cost-critical application |

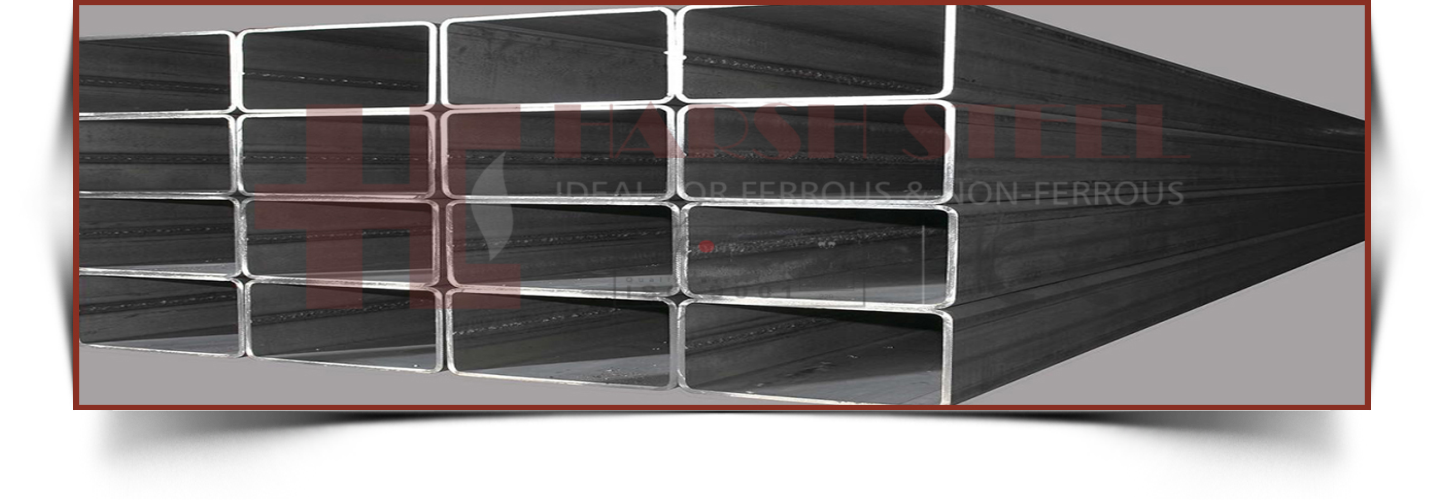

SQUARE TUBES PRODUCT OVERVIEW:-
| Stainless Steel Square Tube | |
|---|---|
| Thickness Range of Stainless Plate | 3/16″ THRU 4″ (LARGER SIZES AVAILABLE UPON REQUEST) |
| Grades | 202, 304/304L, 316/316L,304H, 316H, 309/S, 310/S, 317/L, 321/H, 347/H, 904L, 330, 254SMO, 410. In duplex grades, we can supply 2205 and 2507. Some nickel Alloy such as alloy 200/201, C276, Alloy 400, Alloy 600, Alloy 625, Alloy 800H, Alloy 800HT, 254SMO, AL6XN and others Titanium alloys and copper alloys are also available |
INVENTORY:-
- X = Stocked Item
- P = Call For availability square bar can be cut to size.
- Square bar can be polished per customer specifications.
- Square bar is stocked in Penn met 2000 for improved machinability.
| Size in Inches | Wt per Ft | Wt per 12′ | 303 | 304/L | 316/L | 416 |
|---|---|---|---|---|---|---|
| 3/16″ | 0.120 | 1.440 | X | X | X | P |
| 1/4″ | 0.210 | 2.52 | X | X | X | P |
| 5/16″ | 0.330 | 3.96 | X | X | X | X |
| 3/8″ | 0.480 | 5.76 | X | X | X | X |
| 7/16″ | 0.650 | 7.80 | X | X | X | X |
| 1/2″ | 0.850 | 10.20 | X | X | X | X |
| 9/16″ | 1.080 | 12.96 | X | X | X | X |
| 5/8″ | 1.330 | 15.96 | X | X | X | X |
| 3/4″ | 1.910 | 22.92 | X | X | X | X |
| 7/8″ | 2.610 | 31.32 | X | X | X | X |
| 1″ | 3.400 | 40.80 | X | X | X | X |
| 1-1/8″ | 4.310 | 51.72 | X | X | X | X |
| 1-1/4″ | 5.320 | 63.84 | X | X | X | X |
| 1-3/8″ | 6.400 | 76.80 | X | X | X | X |
| 1-1/2″ | 7.600 | 91.20 | X | X | X | X |
| 1-3/4″ | 10.400 | 124.80 | X | X | X | X |
| 2″ | 13.600 | 163.20 | X | X | X | X |
| 2-1/4″ | 17.200 | 206.40 | X | X | X | X |
| 2-1/2″ | 21.300 | 255.60 | X | X | X | X |
| 3″ | 30.63 | 367.56 | X | X | X | P |
| 4″ | 54.40 | 652.80 | X | X | X | P |
PROCESSING:-
Customers can select a number of processing options to produce stainless steel tubes to their exact specifications, reducing materiel costs, production time, scrap and internal handling.
| Long Product Processing Services Overview | |
|---|---|
| Square Tube Cutting | Products cut include Round Tube, Flat bar, Hex bar, Square bar, Tubing and Hollow Tube, Pipe, Angles, channels, Beams and Tees. Thickness range is 1/16″ to 28″ diameter |
| Square Tube Production Cutting | Penn Stainless can provide production cutting for product diameters up to 4″. We utilize Amanda Production Equipment to achieve these precision cuts with tight tolerances. |
| Square Tube Polishing | Products polished included all tubular products, with OD & ID polishing available, Round Tube, Square Tube, Hex & Flat bar, Angles, Uneven Leg Angles, beams, and other shapes. |
TOLERANCES FOR COLD AND HOT SQUARE TUBESS
COLD FINISHED SQUARE TUBES TOLERANCES:
| CF Tolerances | Plus | Minus |
|---|---|---|
| 1/8″ to 5/16″ (exclusive) | 0.000 | 0.002 |
| 5/16″ to 1/2″ (exclusive) | 0.000 | 0.003 |
| 1/2″ to 1″ (inclusive) | 0.000 | 0.004 |
| over 1″ to 2″ (inclusive) | 0.000 | 0.006 |
| over 2″ to 3″ (inclusive) | 0.000 | 0.008 |
COLD FINISHED SQUARE TUBES STRAIGHTNESS TOLERANCES:
CF: 1/16 inch in any 5 foot; but may not exceed 1/16 X (length in ft/5)
HOT FINISHED SQUARE TUBES TOLERANCES:
| HF Tolerances | Plus | Minus | Out of Sq |
|---|---|---|---|
| Over 7/8″ to 1″ (inclusive) | 0.009 | 0.009 | 0.013 |
| Over 1″ to 1-1/8″ (inclusive) | 0.010 | 0.010 | 0.015 |
| Over 1-1/8″ to 1-1/4″ (inclusive) | 0.011 | 0.011 | 0.016 |
| Over 1-1/4″ to 1-3/8″ (inclusive) | 0.012 | 0.012 | 0.018 |
| Over 1-3/8″ to 1-1/2″ (inclusive) | 0.014 | 0.014 | 0.021 |
| Over 1-1/2″ to 2″ (inclusive) | 1/64 | 1/64 | 0.023 |
HOT FINISHED SQUARE TUBES STRAIGHTNESS TOLERANCES:
HF: 1/8 inch in any 5 foot; but may not exceed 1/8 X (length in ft/5)
STAINLESS STEEL SQUARE TUBES SPECIFICATIONS:
| Stainless Steel Square Tube Specifications | |
|---|---|
| ASTM A276 | This specification encompasses cold-finished or hot-finished tubes, including rounds, squares, and hexagons, and hot-rolled or extruded shapes, such as angles, tees, and channels in the more commonly used types of stainless steels. |
| ASTM A479 | This specification includes cold and hot finished stainless steel tubes, including rounds, squares, and hexagons, and hot-rolled or extruded shapes such as angles, tees, and channels. |
| ASTM A484 | This specification includes wrought stainless steel tubes, shapes, forgings, and billets or other semi-finished materials, except wire, for forging. The materials are available in four types of conditions. |
| ASTM A582 | This specification includes cold or hot finished tubes, which are suitable for machining processes. This specification includes rounds, squares, and hexagons, from common types of stainless free-machining steels. |
| ASTM B473 | This specification includes nickel alloy bar & wire, which can be produced in a solution-annealed condition, stabilized-annealed condition, or annealed condition. |
