AMS 5510 UNS S32100 Flanges, SS 321 Flanges, AISI SS 321 Stainless Steel 321 Flanges Supplier, Manufacturer and Exporter in India
Din 1.4541 SS 321 Flanges, SS UNS S32100 Flanges, Stainless Steel 321 Flanges, 321 Stainless Steel Flanges Suppliers in India.
GENERAL PROPERTIES:-
Alloy 321 (UNS S32100) is a titanium stabilized austenitic stainless steel with good general corrosion resistance. It has excellent resistance to intergranular corrosion after exposure to temperatures in the chromium carbide precipitation range of 800 – 1500°F (427 – 816°C). The alloy resists oxidation to 1500°F (816°C) and has higher creep and stress rupture properties than alloys 304 and 304L. It also possesses good low temperature toughness.
Alloy 321H (UNS S 32109) is the higher carbon (0.04 – 0.10) version of the alloy. It was developed for enhanced creep resistance and for higher strength at temperatures above 1000oF (537°C). In most instances, the carbon content of the plate enables dual certification.
Alloy 321 cannot be hardened by heat treatment, only by cold working. It can be easily welded and processed by standard shop fabrication practices.
APPLICATIONS:-
- Aerospace – piston engine manifolds
- Chemical Processing
- Expansion Joints
- Food Processing – equipment and storage
- Petroleum Refining – polythionic acid service
- Waste Treatment – thermal oxidizers
CORROSION RESISTANCE:-
- exhibits good general corrosion resistance that is comparable to 304.
- developed for use in the chromium carbide precipitation range of 1800 – 1500°F (427 – 816°C) .
- can be used in most diluted organic acids at moderate temperatures .
- can be used in pure phosphoric acid at lower temperatures.
- can be used in up to 10% diluted solutions at elevated temperatures.
- resists polythionic acid stress corrosion cracking in hydrocarbon service.
- utilized in chloride or fluoride free caustic solutions at moderate temperatures.
- does not perform well in chloride solutions, even in small concentrations, or in sulfuric acid service.
HOT FORMING:-
- Working temperatures of 2100 – 2300°F (1149 – 1260°C) are recommended for forging, upsetting and other hot working processes.
- Alloy not suitable for work at temperatures below 1700°F (927°C).
- Material must be water quenched or fully annealed after working to re-attain maximum corrosion resistance.
COLD FORMING:-
- Quite ductile and forms easily.
WELDING:-
- Readily welded by most standard processes.
- Post weld heat treatment is not necessary
MACHINING:-
- Hardening rate of 321 makes it less machinable than 410 stainless steel, but similar to 304
CHEMICAL PROPERTIES:-
% | Cr | Ni | C | Si | Mn | P | S | N | Ti | Fe |
---|---|---|---|---|---|---|---|---|---|---|
321 | min:17.0 max:19.0 |
min: 9.0 max:12.0 |
max:0.08 | max:0.75 | max:2.0 | max:0.045 | max:0.03 | max:0.10 | min:5*(C+N) max:0.70 |
Balance |
321H | min:17.0 max:19.0 |
min: 9.0 max:12.0 |
min:0.04 max:0.10 |
min:18.0 max:20.0 |
max:2.0 | max:0.045 | max:0.03 | max:0.10 | min:5*(C+N) max:0.70 |
Balance |
MECHANICAL PROPERTIES
Grade | Tensile Strength ksi (min.) |
Yield Strength 0.2% Offset ksi (min.) |
Elongation - % in 50 mm (min.) |
Hardness (Brinell) MAX |
---|---|---|---|---|
321 | 75 | 30 | 40 | 217 |
PHYSICAL PROPERTIES
Denstiy lbm/in3 |
Coefficient of Thermal Expansion (min/in)-°F |
Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | Modules of Elasticity (annealed)2-psi | |
---|---|---|---|---|---|
at 68 °F | at 68 – 212°F | at 68 – 1832°F | at 200°F | at 32 – 212°F | in tension (E) |
0.286 | 9.2 | 20.5 | 9.3 | 0.12 | 28 x 106 |
ASME/ANSI B16.5 | Welding Neck Flange, Slipon Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
---|---|
Pressure Class | 150, 300, 400, 600, 900, 1500, 2500 |
ASME/ANSI B16.47 | Welding Neck Flange, Blind Flange (Series A & B) |
Pressure Class | 75, 150, 300, 400, 600, 900 |
ASME/ANSI B 16.36 | (Orifice Flanges) Welding Neck Flange, Slipon Flange, Threaded Flange |
Pressure Class | 300, 400, 600, 900, 1500, 2500 |
BS 4504 SEC 3.1 | Welding Flange (111/134), Hubbed Slipon Flange (112), Hubbed Threaded Flange (113), Lapped Pipe End Flange (133), Plate Flange (101), Loose Plate Flange (102), Loose Plate with Weld-neck Flange (104), Blank Flange (105) |
Pressure Class | PN 2.5 to PN 100 |
Din Flanges | DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 |
Pressure Class | PN 6 to PN 100 |
ANFOr NFE 29-230 | Plate Flange (01), loose Plate Flange (02, 03, 04), Blind Flange (05), Welding Neck flange (11), Hubbed Slip on Flange (12), Screwed Flange (13),Hubbed Socket Welding Flange (14), Loose Hubbed Flange (15) Integral Flange (21) |
Pressure Class | Iso - PN 2.5 to PN 40 |
Pr EN 1092-1 Flanges | Plate Flange (01), Loose Plate Flange (02, 04), Blind Flange (05), Welding Neck Flange (11), Hubbed Slip on flange (12), Screwed Flange (13), Integral Flange (21) |
Pressure Class | PN 2.5 to PN 100 |
ASME/ANSI B 16.9/MSS SP-4 | Stub End |
Type | A, B, C |
Metal | Grade | UNS Number |
---|---|---|
Austenitic / Ferritic / Austenitic / Stainless Steel | F304 / F304H / F304L * F309* F310* / F310H* F316 / F316H / F316L* F317 / F317L* F321 / F321H* F347 / F347H* F51 (2205)* / F60* F53 (2507)* F446* |
S30400 / S30409 / S30403 S30900 S31000 / S31009 S31600 / S31609 / S31603 S31700 / S31703 S32100 / S32109 S34700 / S34709 S31803 / S32205 S32750 S44600 |
Ferritic / Martensitic Alloys | F1* F5 / F5 A* F6 CL 1, 2, 3, 4, (F410)* F9* F11 CL 1, 2, 3* F22 CL 1, 3* F91* F12 CL 2* |
K12822 K41545 / K42544 S41000 K90941 K11597 / K11572 K21590 K90901 K11564 |
Nickel & Nickel Based Alloys | Nickel 200* Nickel 201* Alloy 400* Alloy 600* Alloy 601 Alloy 625 Alloy 800 / 800H / 800HT* Alloy 825* Alloy 904L* Alloy 20* Alloy C276* |
N02200 N02201 N04400 N06600 N06601 N06625 N08800 / N08810 / N08811 N08825 N08904 N08020 N10276 |
Low Temperature Alloys | LF - 1* LF - 2* LF - 3* A707 L3* A694 F42 - F65* A350 LF6* |
K03009 K03011 K32025 |
Aluminum Alloys | Alum 3003*
Alum 6061 |
A93003
A96061 |
Copper - Nickel Alloys | 70/30 90/10 |
C71500 C70600 |
ASTM | 304/304L/304H, 316/316L/316H, 317/317L, 321/321H, 347/347H, 316Ti, F51 |
---|---|
DIN | WNR 1.4541, WNR 1.4571, WNR 1.4301, WNR 1.4306, WNR 1.4307, WNR 1.4401, WNR 1.4404, WNR 1.4438, WNR 1.4462 |
AFNOR (NF E) | BF Z 3 CN 19-09, BF Z 7 CN 18-09, BF Z 6 CNT 18-10, BF Z 3 CND 17-11-02, BF Z 7 CND 17-11-02, BF Z 6 CNDT 17-12, BF Z 6 CNDNb 18-12 |

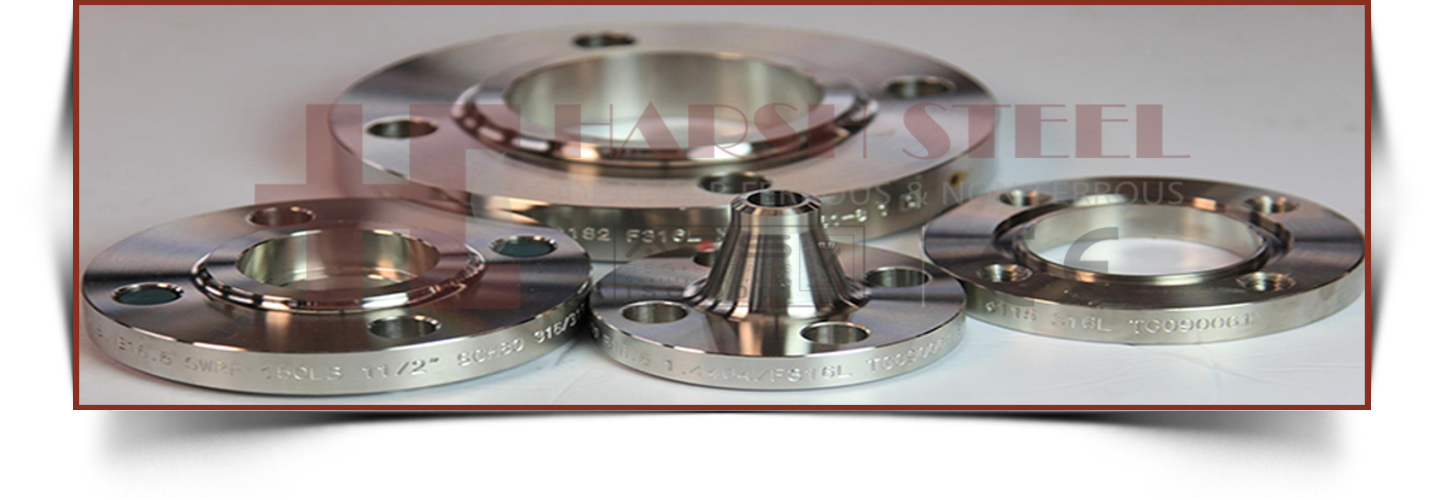

STAINLESS STEEL FLANGES
A wide variety of stainless steel flanges are all available at CCTF, including weld necks, slip-ons, threaded, socket weld, lap joints, blinds, and hub blinds.
GRADES A316/316L and A304/304L
- Weld Neck
- Sch10, Sch40 and Sch80 Bore
- Classes 150, 300, 600, 900, 1500
- Sizes: ½" to 24"
- Slip-On
- Classes 150, 300, 600, 900, 1500
- Sizes: ½" to 24"
- Threaded
- Classes 150 & 300
- Sizes: ½" to 4"
- Lap Joint
- Class 150 only
- Sizes: 2" to 6"
- Blind
- Classes 150 & 300
- Sizes: ½" to 12"
- Hub Blind
- Classes 300, 600, 1500
- Sizes: ½" to 6"
- Socket Weld
- Sch40 & Sch80 Bore
- Classes 150, 300, 600
- Sizes: ½" to 2"
We export our STAINLESS STEEL 321 FLANGES products to Western and Eastern Europe, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia etc. We are sure that we also can cover the requirements requested by your company you can email us at harshsteel@ymail.com for your instant requirements.
